The JL-3 series Photocell lamp holder light controller is an automatic light control device that is integrated into the lamp holder. Widely used in residential, commercial and municipal lighting, it automatically controls the lamp switch by sensing ambient light. here offer lighting solution service below:
1. Optional select narrow or wide voltage type light controller.
2. You can choose different type sensor, either CDS or photo-transistor. If you like best lower power consumption, here just recommend our new product type JL-312C 0.2w Max.
3. Anther type precision control and different work mode: available adjust setting delay turn on, auto sensing, the last item random switch mode(among via auto into 2h, 5h and 8h dedaly turn on). eg JL-320c electronic type lamp holder controller.
4. Lamp holder with base type E25/E26/E12, but E12 only use for JL-312C halogen lamp.
Fail Mode:
Fail-On
Fail-Off
The JL-3 series is compatible with a variety of common lamp holders, including E26, E27 and E12. It is suitable for traditional incandescent lamps, halogen lamps, energy-saving lamps (CFL) and other types of lamp. As well as it is suited to CFL energy-saving lamps, ensuring energy-saving, safety and stability.

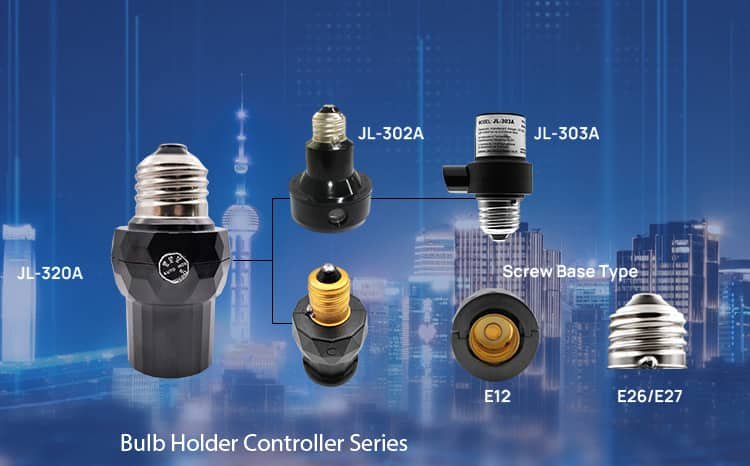

CDS type lamp holer base: JL-301A, JL-302A/B, JL-303A/B.
Low consumption:JL-312C and JL-301A
Programmable Bulb Holder Control: JL-320C
Key properties
Zero-crossing
CFL/LED
A/B
| Model No. | Sensor Type | Rated Voltage | Power Consumption | Rated Loading | Off-Levels (Lux) | Fail Mode |
|---|---|---|---|---|---|---|
| JL-301A | CDS (Photocell) | 120V | 0.5W Max | 150W | 20-40 Lux | Fail-Off |
| JL-302A | CDS (Photocell) | 120V/240V | 1.5 W Max | 150W | 10~20Lx Turn-On / 30~60Lx Turn-Off | Fail-On |
| JL-303A | CDS (Photocell) | 120V/240V | 1.5W Max | 150W | 10~20Lx Turn-On / 30~60Lx Turn-Off | Fail-On |
The lamp holder light controller can adapt to various threaded standard lamp holders, so that it can be flexibly applied to lamps of different structures, and come true automatically turn on or turn off outdoor lighting system management. such as municipal lampposts, street lights and in gardens.
First disconnect the power supply, after confirming the safety, screw the lamp holder light control directly into the lamp holder (E26 or E27), and then screw the bulb into the lamp holder interface of the light controller. Once the connection is completed, restore the power supply and the system will automatically control the switch of the lamps and lanterns according to the ambient light, without additional wiring.
Available offer light-weight and inadequate goal of quantities, and Design some sample for you when deal with special occasion.
We respond quickly to tailor personal requirements, then provide samples for testing before producing large quantities.
Here supportable book different quantities, and for you pre-book how to arrange delivery time and take on good budget.
Our OEM/ODM services include logo, packaging, photocontrol functions, and smart city controller development to boost your product’s value and market success.
