Direct wire-in controller is similar to button photocell controller performance. additionally, direct electronic wire controller with CDS or photo-diode, and photo-transisitor. Chilighitng can help me regain design sensing type, even in input voltage or redefined 3 wire change to be 2 line or 4 lines forward different lighting environment. whether this is button photocell or other, we can had better lighting solutions and under cabilities range to respond for you. as resulte just as qualification led lighting solutiontor.
Parts
rubber gasket
length size optional
Hex nut
Direct Electronic Wire-in Controllers
>> JL-401 Series
>> JL-411 Series
>> Twist Lock Photocontrollers
>>Smart Photocell Sensor
>> Zhaga Socket
>> Zhaga Sensor
LED Display Lighting
>>Magnetic Track Light
>>Mini Pole Spotlight
>>Lighting Accessories
>>Mini Recessed Spotlight
>> Rotating LED Bar

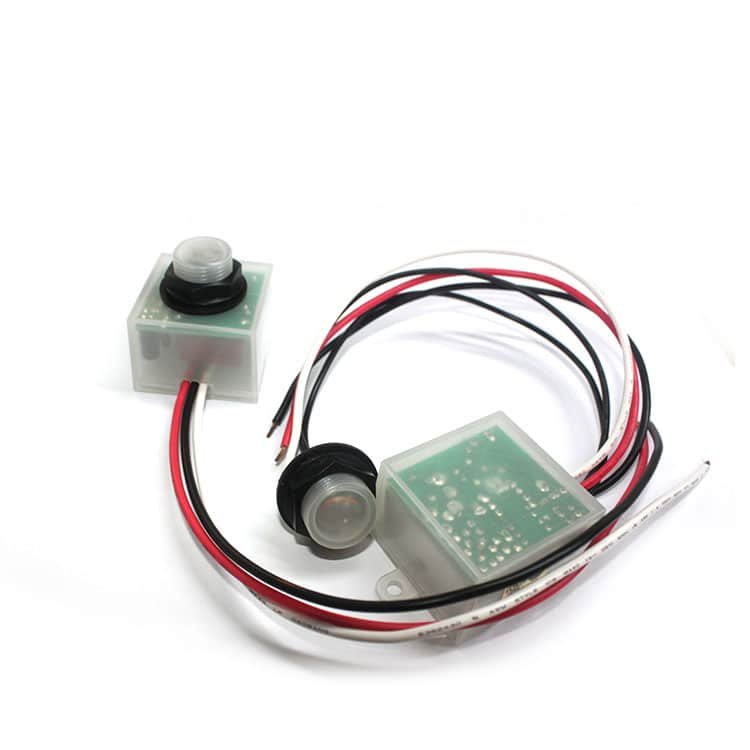

Direct electronic light control is a simple and efficient light control device. Usually connected with three wires, which is convenient for quick wiring and direct connection to the lamp driver to realize the automatic switch control of the lamp.
Demo Video
Here JL401C is wide voltage 120-277V and surge protection, JL-103A wire type photocell with CDS and narrow voltage, 120V, JL-411 is a low-voltage model, suitable for specific low-voltage systems, with RoHS certification but no UL certification.
| Model No. | Sensor Type | Rated Voltage | Power Consumption | On-Off Levels (Lux) | Surge Protection | Fail Mode |
|---|---|---|---|---|---|---|
| JL-401C/CR | CDS | 120-277VAC | 5W Max | 10~20Lx Turn-On / 25~35Lx Turn-Off | Yes | Fail off |
| JL-411(R) | Photodiode | 12/24V DC | 1W Max | 5~15Lx Turn-On / 20~80Lx Turn-Off | No | Fail on |
| JL-103A | CDS | 120VAC | 1.5W Max | 5~15Lx Turn-On / 30~60Lx Turn-Off | optional | Fail on |
The 401 series is used a lot in urban street lights, commercial lighting and industrial sites. It can handle 120-277VAC (alternating current) environments, has surge protection and UL certification. The 411 series is mainly aimed at 12-24V (low-voltage) systems and is used in garden lighting, solar lights and led neon sign. It focuses on saving energy and low-voltage safety, and is suitable for special power supply and environmental protection requirements.
The size of the threaded head is M20×1.5mm, and the thread spacing is 1.5mm. It is suitable for lamp mounting holes with an opening diameter of about 20 mm.
The light control brown line is connected to the power cord (line), the red line is connected to the input terminal of the lamp, the blue line and the extension line of the output terminal of the lamp are collinear to the Neutral line (Neutral), forming a complete control loop that causes the lamp to switch on and off automatically according to changes in ambient light.
Here you can keep more waterproof feature, so you place seal silicone attach to parts where it had completed mounted light fixture near photocontroller.
12V DC type JL-411(R)-12D
24V DC type JL-411(R)-24D
48V DC type JL-207-48D
24V DC type JL-205-24D
12V DC type JL-205-12D
Available offer light-weight and inadequate goal of quantities, and Design some sample for you when deal with special occasion.
We respond quickly to tailor personal requirements, then provide samples for testing before producing large quantities.
Here supportable book different quantities, and for you pre-book how to arrange delivery time and take on good budget.
Our OEM/ODM services include logo, packaging, photocontrol functions, and smart city controller development to boost your product’s value and market success.
