The NEMA receptacle is an important connecting component in Endurance dimming photocell control system. It is main used for the electrical connection module of outdoor lighting fixtures and lamp controllers. We can divide NEMA receptacle connectors into three standard models: 7-pin, 5-pin and 3-pin. These models are more suitable for the needs of different street lighting projects.
The 7-pin receptacle is designed for more complex digital communication control systems and supports multiple signal transmission and dimming control. such as signal wire 0-10V and DALI (Digital Addressable Lighting interface), In contrast, the 3-pin socket has a simple structure and is ideal for basic switch control applications. like JL-200x 3 pin wire contain red, black, and white. there is 3 wire is nothing dimming function output.
Our Receptacles are made from materials and using processes that meet industrial standards to ensure long-term stable operation. They compliant with UL, CE, CB, and other international certifications and are suitable for all kinds of light controllers and lighting systems.
* The black line is the firewire (L), responsible for transmitting the main power supply current.
* The white line is the middle line (N), forming the loop current path.
* The pink and purple lines are the driver’s dimming signal lines (DIM-/+), used for 0–10 V dimming control.
* The red line is the driver’s black line.
In contrast, the standard three wires of the 200X series are configured as fellows black (fire-wire), red (control signal line), and white (center line). The 3-wire socket has a compact structure design, which is suitable for street lights and only needs ‘on-off’ lighting.
The 7-wire design is a multi-function reserved interface, which is widely used in intelligent lighting and complex dimming systems to ensure the separation of signals and power supply, and improving system stability.
The JL-246FXA features a high-grade waterproof and sealed structure, and this controller base with IP65 protection standards or higher. Additionally, This design effectively blocks the entry of water vapour and dust, preventing corrosion of the internal electrical contacts.
The rear terminals of the JL200Z socket is fitted with a back cover made of ABS material to protect the internal circuit from external environmental influences. Aluminum and stainless steel plug-in bracket options are available. In addition, the technical team at Top Brand rank factory can tailor the size, shape and material of the bracket to meet specific customer requirements, ensuring the socket can be firmly installed on the side of a lamp pole, lamp arm or lamp holder to provide maximum support for different light control scenarios.

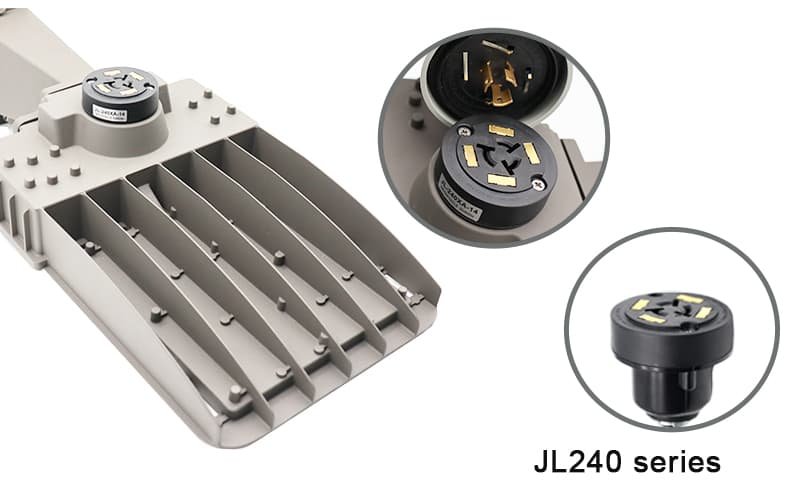

The JL-240SXB socket adopts an ultra-thin design and is equipped with a 5-pin wiring port. The size of the rear end of the main body is shorter than that of the classic jl240XA 7 pin receptacle, which is convenient for installation in lamps and lanterns with limited space. for you brilliant feature, not only save space of light fixture, but also improve installation flexibility and aesthetics, while ensuring a good electrical connection between lamp base and photocontrol.
There many feature of design structure for JL-260C, such as receptacle top with rotation, rear terminal with rear cover ABS, and contact leads is made from cable. furthermore, rear terminals with special tech-craft waterproof Gland Cable connector avoid from moisture and dust into led light inner.
JL-260D sockets are divided into two types: D1 is an integrated type, equipped with a gear ring and a protective cover; D2 is a split design, the main body of the socket is separated from the gear ring.
Compared with the JL-240XA, the JL-240XHA socket has metal contact points designed with narrow, wide and long arc strips to enhance the contact area between the light controller’s pins and the socket.
JL-250T NEMA 7 PIN recetpacle with 3 parts, it contain receptacle central body, round shape cover, and silicon gasket. on the install aspect, After inserting the center slot with a screwdriver, the rotation of the socket can be adjusted to determine the appropriate installation direction.
The JL-230 has a three-pin split socket and a similar structure to the JL-205T. It is equipped with a rotatable design that can be installed by inserting a screwdriver into the slot. F-rear terminals with sealing silicone design.
The washer sits snugly attach the rear of the socket, eliminating the need for manual adjustment, eliminating the need for manual adjustment.
Available offer light-weight and inadequate goal of quantities, and Design some sample for you when deal with special occasion.
We respond quickly to tailor personal requirements, then provide samples for testing before producing large quantities.
Here supportable book different quantities, and for you pre-book how to arrange delivery time and take on good budget.
Our OEM/ODM services include logo, packaging, photocontrol functions, and smart city controller development to boost your product’s value and market success.
