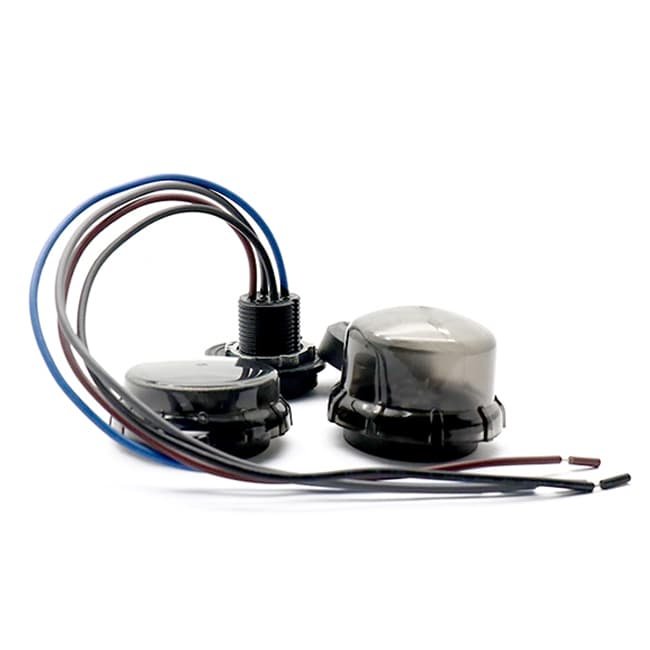

zhaga book18 series
zhaga book18 series

All in Service for Light Fixture Zhaga Sensor Series

Here are all the Zhaga Series ranges comply with Zhaga Book 18 standard. The product line is divided into two categories: Zhaga sensor with wireless intelligent automatic control and non-smart light sensing control.  on the another physical components  aspects, Zhaga accessories for plug-and-play interoperability of LED lamps and sensors for modern digital communication interfaces. It are suitable for a variety of intelligent lighting solutions, providing efficient light control applications.

long-join-Our-Product
Zhaga assessories

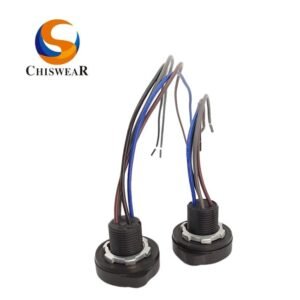

About Zhaga Socket JL700

The JL-700 Zhaga Socket is an extension module for light fixture and lighting controller. It is prepare to provides a perfect  light control system environment. Its design allows functional modules to be plugged in without affecting the lamp inner circuit’s normal operation. It has a compact, miniature design, and the signal line terminal supports the DALI protocol. This can be connected to the lamp’s internal driver to enhance its intelligent control capabilities.

Mount Way of Zhaga Socket JL-700

JL-700 can be installed above the lamp holder, lamp pole, lamp arm or next to the lamp holder to adapt to the installation needs of different types of lamps and lanterns. This provide a wide range of application possibilities, and ensure the best light control effect.

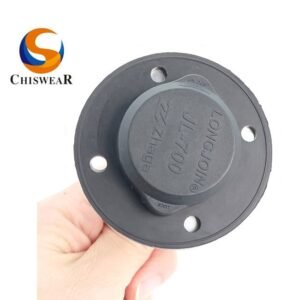

NEMA type JL-700K4/K5 Zhaga Socket

In order to meet the NEMA aperture requirements of traditional light fixtures, the JL-700K4/K5 Zhaga socket provides a plate design, so that it can be compatible with modern Zhaga light control modules on the basis of maintaining the appearance and function of lamps and lanterns. at the moments, it can expand the intelligent application of lamps and lanterns.

0-10V type American JL-700M

JL-700M adopts the American standard Z10 lock design, the interface size is similar in the Zhaga Book 18 standard, and the function supports 0-10V dimming. The connector terminal can support Zhaga controllers with a diameter of 40-80mm, which are suitable for many types of intelligent lighting systems to enhance the dimming and control functions of lamps and lanterns.

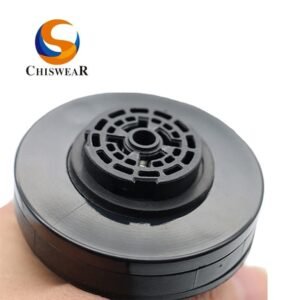

Unique Device of JL-710 Zhaga Socket

For lighting installations without auxiliary power connections, the JL-710K is an ideal solution for cost-effective configuration. It reduces the need for auxiliary power equipment required for the separate JL-700, providing customers with a more economical and efficient solution.

Zhaga Accessories Classification:

Zhaga Extension Cap, JL-700-cap

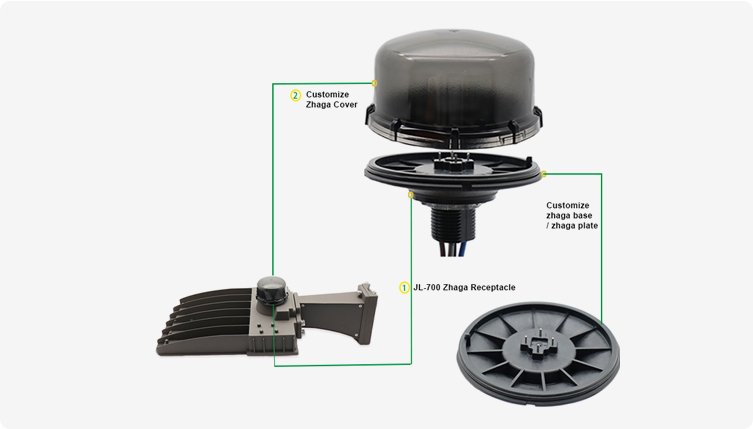

Luminaire Extension module, 7XXJ series zhaga baseplate&cover

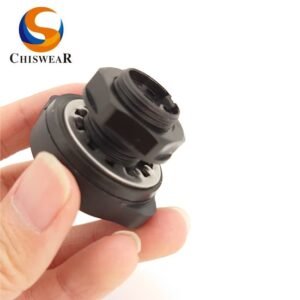

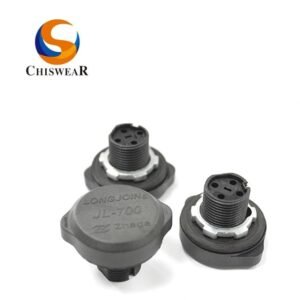

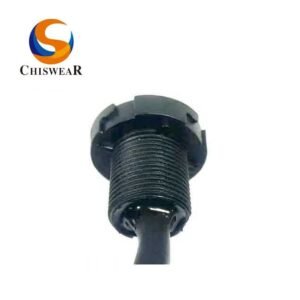

Lumaire Extension Receptacle, JL-700,JL-700w2,JL-700W,JL-700L,JL-700S,JL-700T,JL-700W2
Zhaga-D4i Certified Standard, JL-721A1, JL-721A2 ,JL-721A3
Link: www.zhagastandard.org

Book18 Product type

  1. Standard type accessories: 700 zhaga socket&base 7XJ, cover 20-50mm
  2. Communication protocol model: ZigBee, NB-iot, Wifi, LoraWan, BLE, ZigBee&LTE
  3. Sensing mode: Microwave or PIR
  4. Dimming Mode: 0-10v or Dali
  5. To support lighting controller solution for  peripheral I/O interface integration services

About Chilighting Service

Available offer light-weight and inadequate goal of quantities, and Design some sample for you when deal with special occasion.

We respond quickly to tailor personal requirements, then provide samples for testing before producing large quantities.

long-join-Our-Service_07

Here supportable book different quantities, and for you pre-book how to arrange delivery time and take on good budget.

long-join-Our-Service_05

Our OEM/ODM services include logo, packaging, photocontrol functions, and smart city controller development to boost your product’s value and market success.
