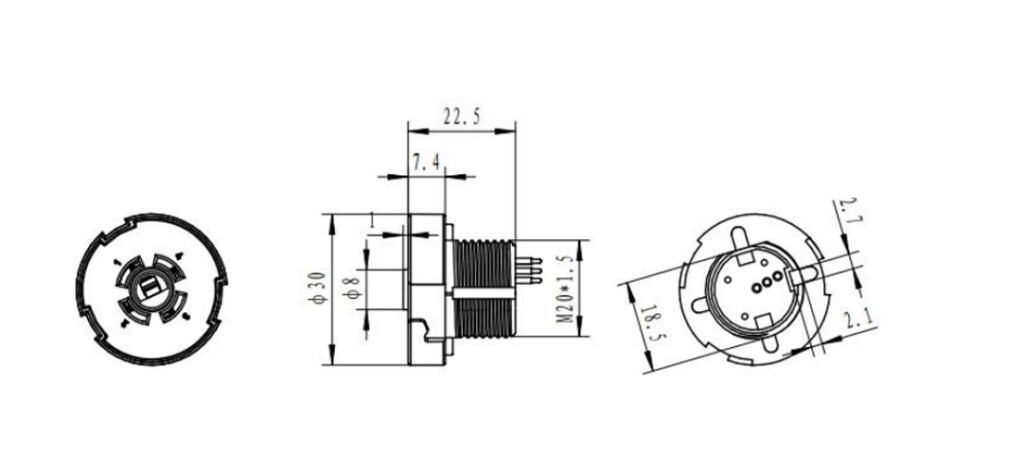

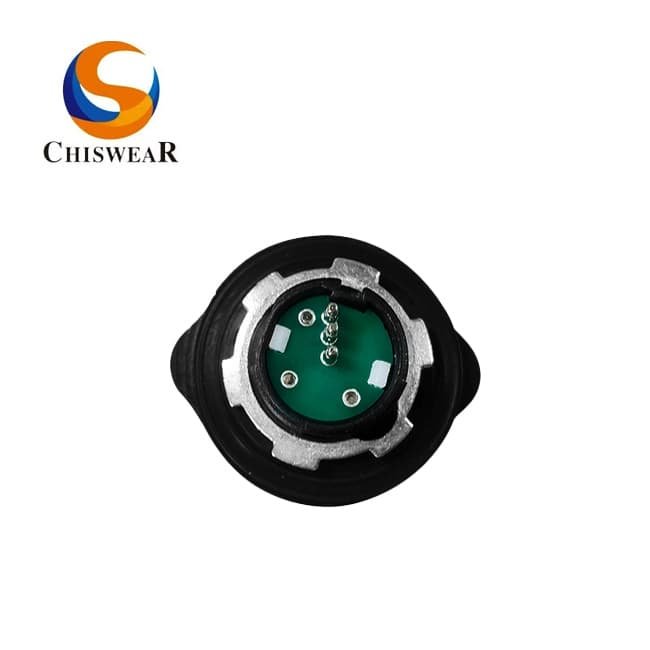

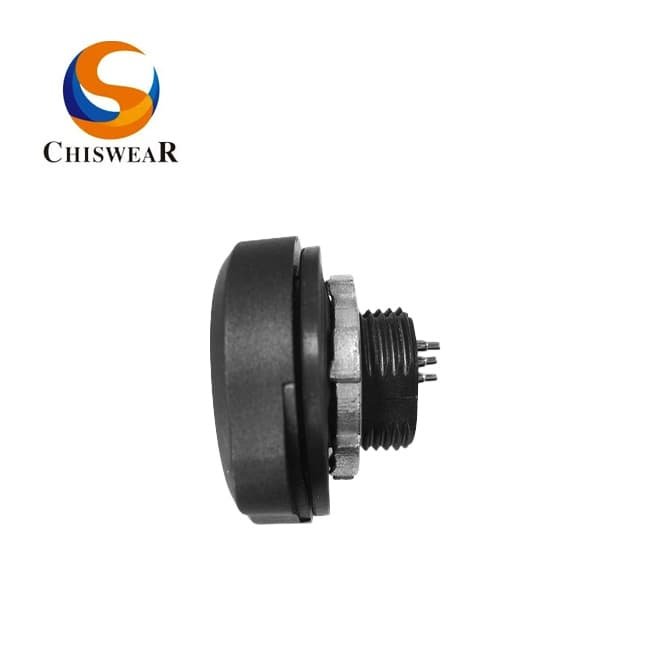

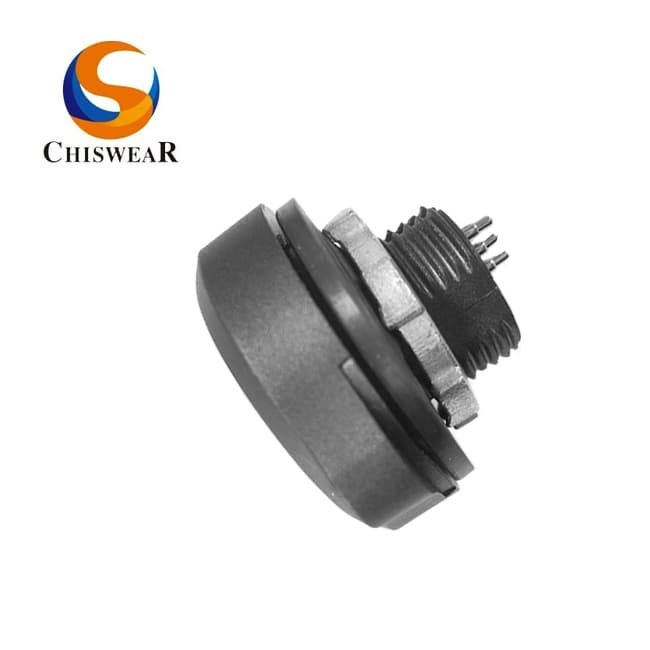

The JL-700T3N with Flick-pin design structure, it is meet to B00k18 standard,  and no wiring to connect between dimming and led lighting driver. so easy to install, you can slowly flick-pin contact surface on the light fixture. Note: this socket rear terminal thread length 13.1-14.1mm, so you can use this add available light inter space. while 3 pin flick-pin is design to solve install wrong with conductivity or poor dimming, it is benefit for enhance electric current and meet steady dimming output strength.

Feature

1. 1. Standardized interface of zhaga socket diameter 30mm.
   2. Compact size allowing greater fexibility in luminaire design
   3. Combing between light fixture and zhaga connector system kits, it can sealing to achieve IP66 with no mounting screws.
   4. Scalable solution allows use of Ø40mm photocell and a Ø80mm central management system with the same connection interface
   5. Flexible mounting position, upwards, downwards and sideways facing
   6. Integrated single gasket that seals to both luminaire and module that minimizes assembly time.

* here Chilighting offer zhaga series controller.
* short thread length type:700T3N, 700T, 700S.

* available customizable wire length;
* optional offer zhaga typle conroller base: JL-701j, JL-711J, JL-731J, JL-732J, JL-741j, JL-742j.
