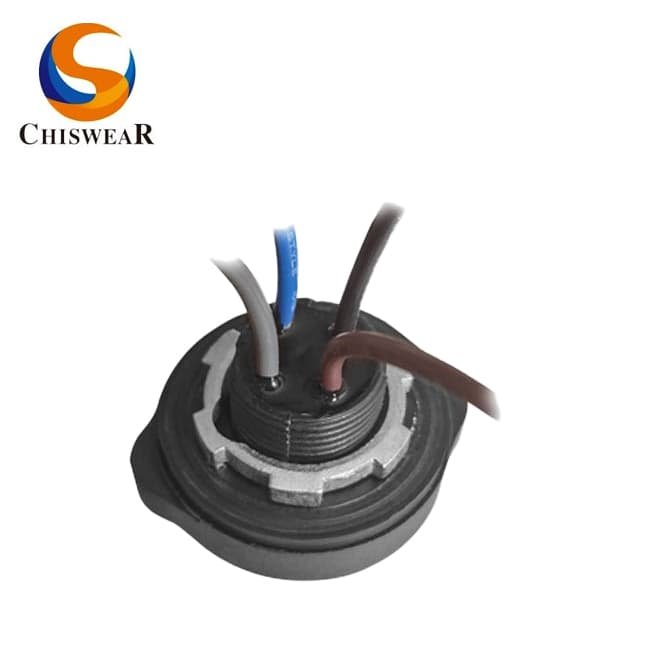

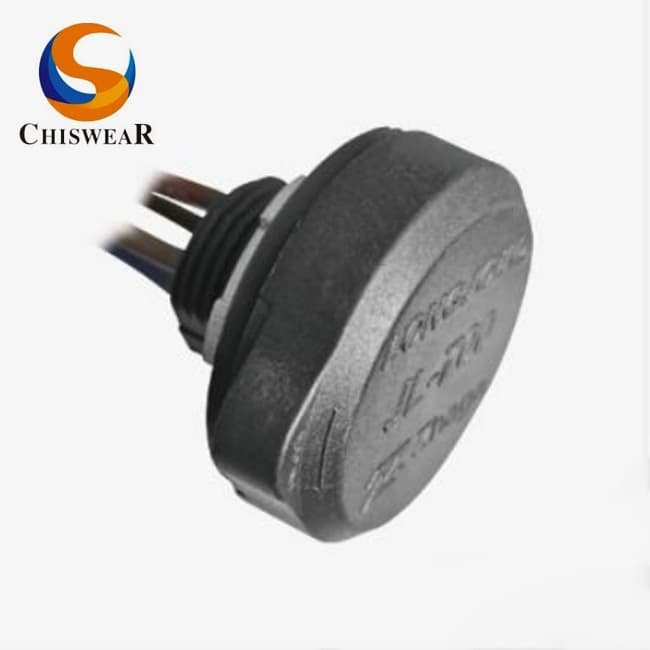

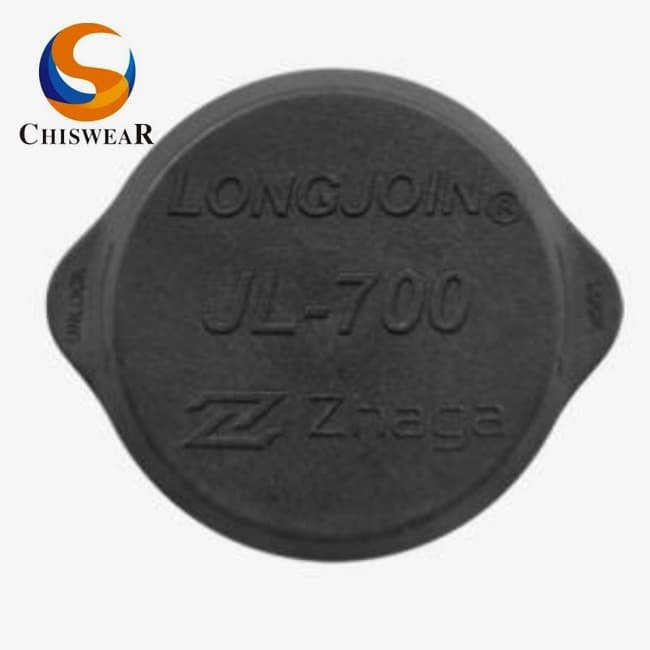

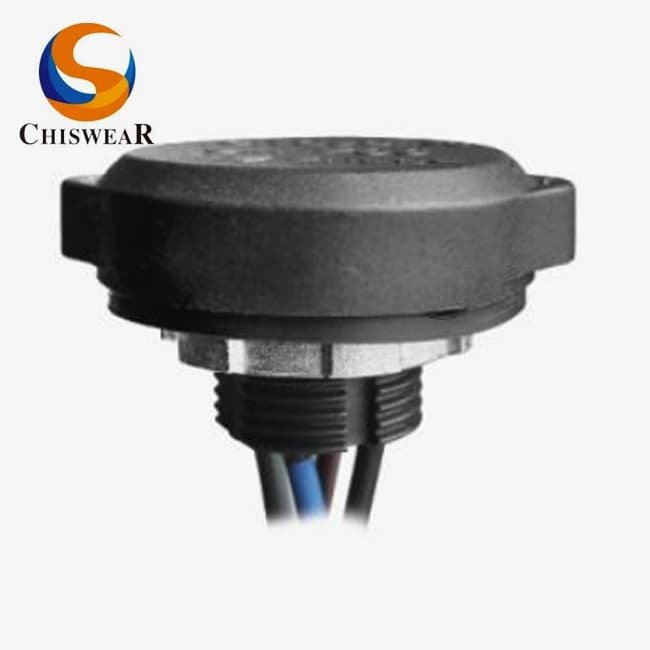

Here JL-700S with minor improve version slot groove structure zhaga socket, and this type socket in thread length size is low than JL-700 29mm, but its size only 22.5mm. To increase the capacity of the inner space of our municipal street lamp, after a few years, Chilighting support this from cooperation with our reputation lighting controller, a new base type, the universal version’s thread length is 11.6 mm from the socket surface to the thread terminal.

Feature

1. 1. Standardized interface of zhaga socket diameter 30mm.
   2. Compact size allowing greater fexibility in luminaire design
   3. Combing between light fixture and zhaga connector system kits, it can sealing to achieve IP66 with no mounting screws.
   4. Scalable solution allows use of Ø40mm photocell and a Ø80mm central management system with the same connection interface
   5. Flexible mounting position, upwards, downwards and sideways facing
   6. Integrated single gasket that seals to both luminaire and module that minimizes assembly time.

* here Chilighting offer zhaga series controller:JL-712B2A2, JL-712G3L, JL-712A2H,JL-722B2A2, etc
* short thread length type:700T3N, 700T, 700S.

* available customizable wire length;
* optional offer zhaga typle conroller base: JL-701j, JL-711J, JL-731J, JL-732J, JL-741j, JL-742j.
