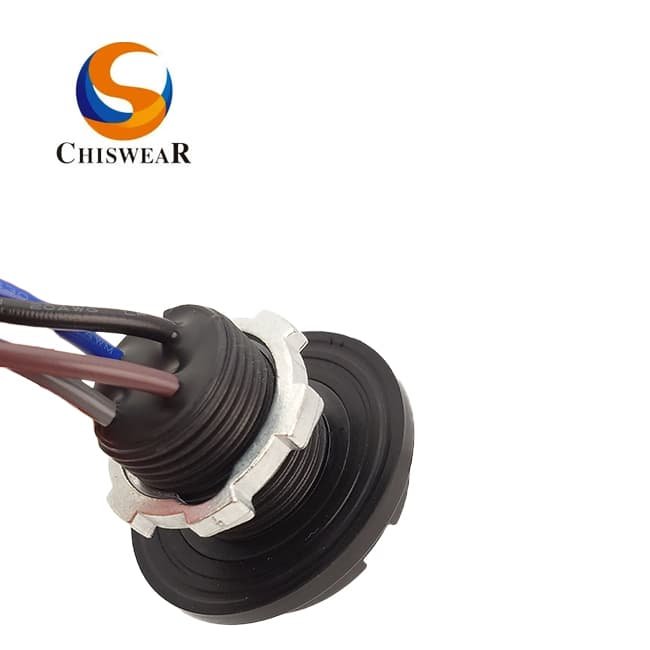

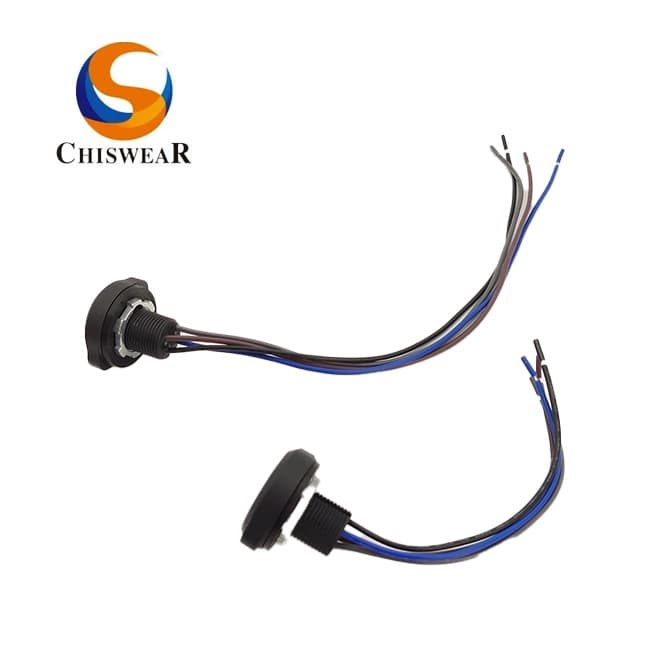

JL-700 zhaga socket with slot feature. it is an good improved solutions to solve users’ practical installation problems. The slot design not only solves the problem of the silicone gasket warping against the face of the fixture, but also greatly improves water resistance and ease of installation.
EU Version Wire Gauge Zhaga Socket
– Port 1 (Brown): 24Vdc
– Port 2 (Gray): DALI (or DALI based protocol) – /common ground
– Port 3 (Blue): DALI (or DALI based protocol) +
– Port 4 (Black): General I/0
Product Parameter
This zhaga socket JL-700 electrical mechanical structure is separated by different parts, such as zhaga cap, zhaga body, and metal nut / plastic nut, if you chooose plastic nut to attach this socket, then you can add a parts stop-back ring, silicone gasket.
Feature

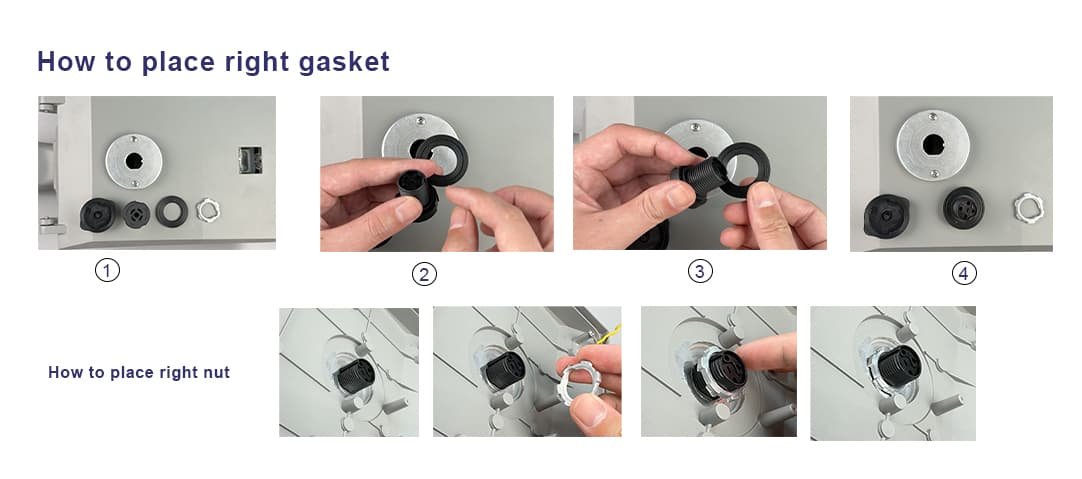

how to right place gasket

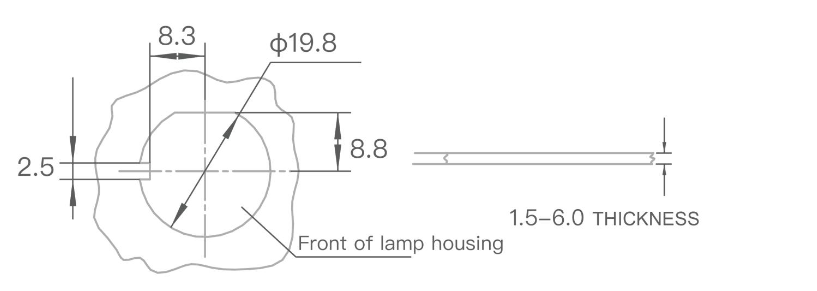

Drilling hole Shape and Design Size
|
Product Model |
JL-700 (slot design version) |
|
Thread Diameter |
M20X1.5 |
|
*Wires |
AWM 1015,18/20/22 AWG,105°C 6″ |
|
IP Grade |
IP66 |
|
Receptacle Diameter |
Ø30mm |
|
Gasket Diameter |
Ø37.8+/-0.2 mm |
|
Thread length |
21.6+/-2 mm |
|
Contacts rating |
1.5A, 30VDC (24V typical) |
|
Surge test |
Meets 10kV common mode surge test |
|
Capable |
Hot pluggable capable |
|
Ik09 test |
Pass |
|
Contacts |
4 pole contacts |
|
Port 1 (Brown) |
24Vdc |
|
Port 2 (Gray) |
DALI (or DALI based protocol) –/common ground |
|
Port 3 (Blue) |
DALI (or DALI based protocol) + |
|
Port 4 (Black) |
General I/O |
*Conductor specification: # 20 conductor has UL certification
* here long-join offer zhaga series controller: JL-712B2A2, JL-712G3L, JL-712A2H,JL-722B2A2, etc
* here other type book18 interface: NMEA swith to Zhaga socket JL-710, short thread length:JL-700S, JL-700T, and JL-700T3N.
* available customizable wires length;
* optional offer zhaga typle conroller base: JL-701j, JL-711J, JL-731J, JL-732J, JL-741j, JL-742j.
Product Size
