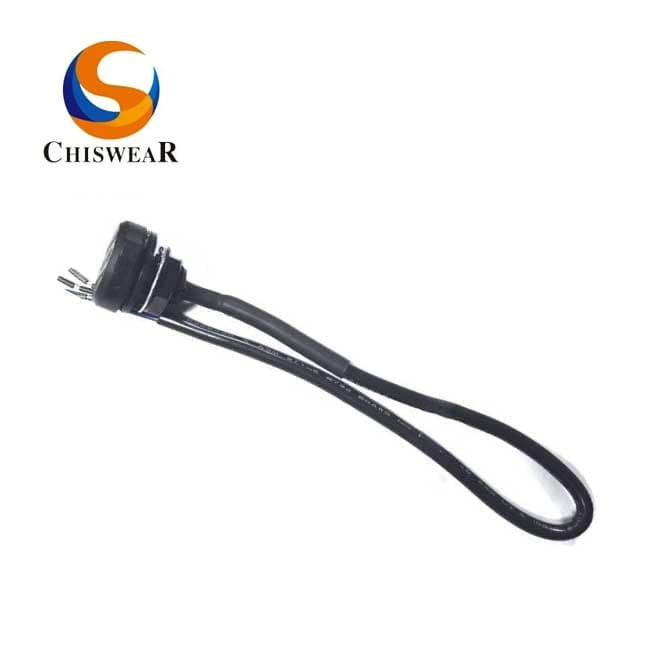

The length size of JL-700L 10-20cm heat shrink tube wrapped this cable (blue,black, brown,and gray), and this socket with rear terminal is be silicone glue sealed, so it tighter rain design than JL-700L standard.
– Port 1：24VDC
– Port 2：DALI–/GND
– Port 3：DALI+
– Port 4: reserve l/O
Product Parameter
The Book18 heat-shrinkable tube-wrapped cable (JL-700L) is a micro-improved outdoor light control connection system. The heat-shrinkable tube is made of high-quality polyolefin material, which provides excellent insulation and weather resistance. It is also waterproof and dust-proof, and effectively prevents ageing and damage caused by environmental factors at the cable connection.
Feature
1-supports the standard wire gauge of 18/20/22 AWG, ensuring a rated voltage of 105°C and 600V for stable outdoor use over a long period of time.

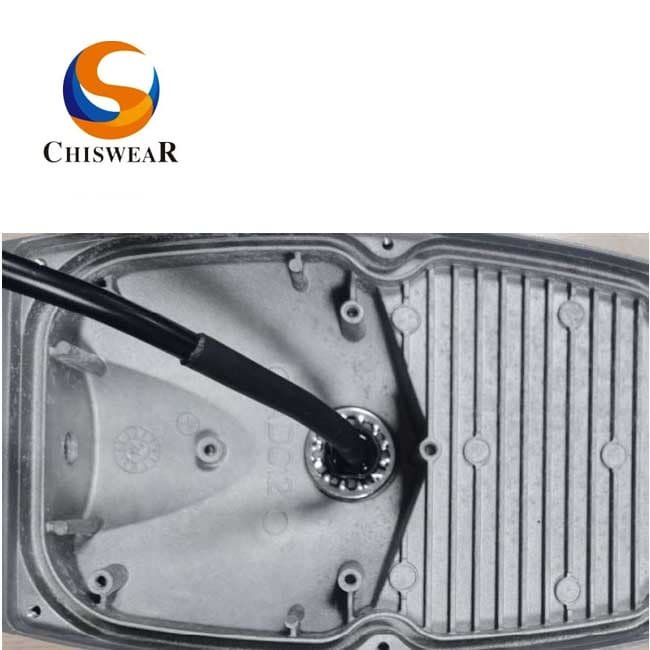

2-JL-700L heat shrink tube had completely mounted this light fixture, then a good light fixture seal performance further tight-water improve level.
3-To keep this silicone gasket from wrinkling, you should lock torque not less than 2.5N-m.
| Model No. | JL-700L (heat shrink tube) |
| Rated voltage | 30VDC Max |
| Power Consumption | 1.5A Max |
| Material/td> | 1. The body is made of polybutylene terephthalate (PBT) UL94 V-0 & 5VA 2. Contacts made of phosphor bronze 3.The gasket is made of silicone (UL94 V-0)) |

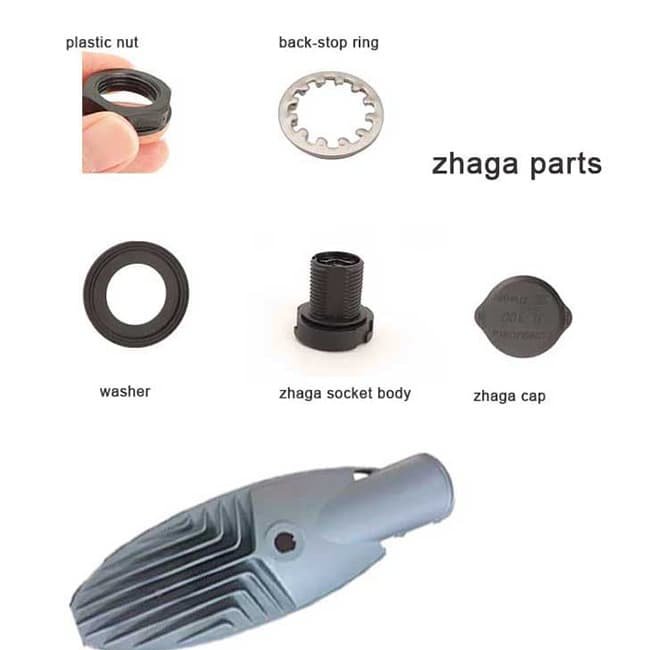

| Parts | zhaga body socket, zinc nut/plastic, gasket, and, zhaga cap,gland cable connector |
| Recommended surface installation flatness of lamps | the angle is less than 1.5 degrees |
| Related Humidity | 96% |
| Work Temperature | -40 ℃-70℃ |
| Wires Type | AWM 1015,18/20/22 AWG,105°C AWM 1007,18/20/22 AWG,80°C |
| IP protect rating | IP66 |
| Certifications | zhaga book18,CE |
* here Chilighting offer zhaga series controller: JL-712B2A2, JL-712G3L, JL-712A2H,JL-722B2A2, etc
* here other type book18 interface: NMEA swith to Zhaga socket JL-710, short thread length:JL-700S, JL-700T, and JL-700T3N.
* available customizable wires length;
* optional offer zhaga typle conroller base: JL-701j, JL-711J, JL-731J, JL-732J, JL-741j, JL-742j.
Product Size
Here Your Product Guides
Chilighting, Good qualities product from nice service and lead-time of from supplier in the china lighting fixture industries. In this case, although we can help you further more than zhaga series service, so also to help you reduce unexpected product risk question.
Book18 zhaga certificate
zhaga book18 listed accemblies product: zhaga base, zhaga cover and zhag socket.
Zhaga Socket
JL-700, JL-700L and JL-700S, JL-710, and JL-700W, JL-700W2, JL-700M, JL-700K4/K5
Zhaga base&cover kits
JL-701J, JL-711J, JL-731J,JL-732J,JL-741J,JL-742J
Qualification Certificates
Product Application Diagram
JL-700C &JL-210K kits
Quick wire connector terminal block
zhaga socket JL-700L, cable and waterproof connector
zhaga lighting project 03
zhaga lighting project, JL-700K4/K5
