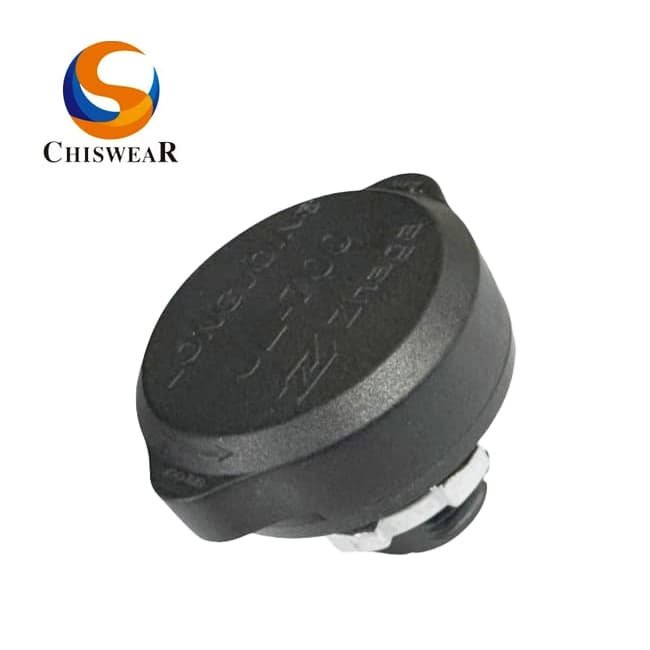

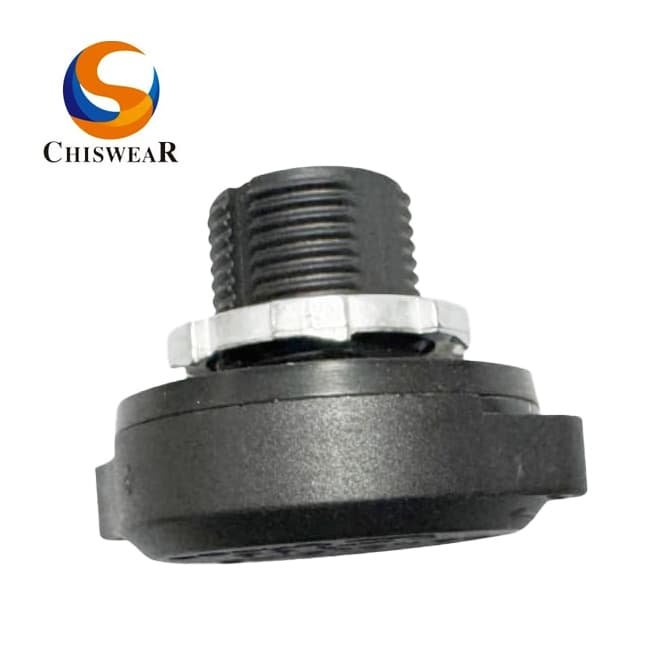

The jl700w2 is minor iteration version, me too, also to meet book18 standard, also extra 4 pcs wiring holes lie in next to the 700W. at the same time, the port definition keep come up with jl-700w.
–Port 1：24VDC
– Port 2：DALI–/GND
– Port 3：DALI+
– Port 4: reserve l/O
Product Parameter
Application case
Multi-level mode, Multiple driver support enables multi-level lighting control, color temperature adjustment, and scene switching.
Intelligent Control Functionality, dim-light by motion sensing, microwave sensing, and PIR driver dimming, and remote control and monitoring.

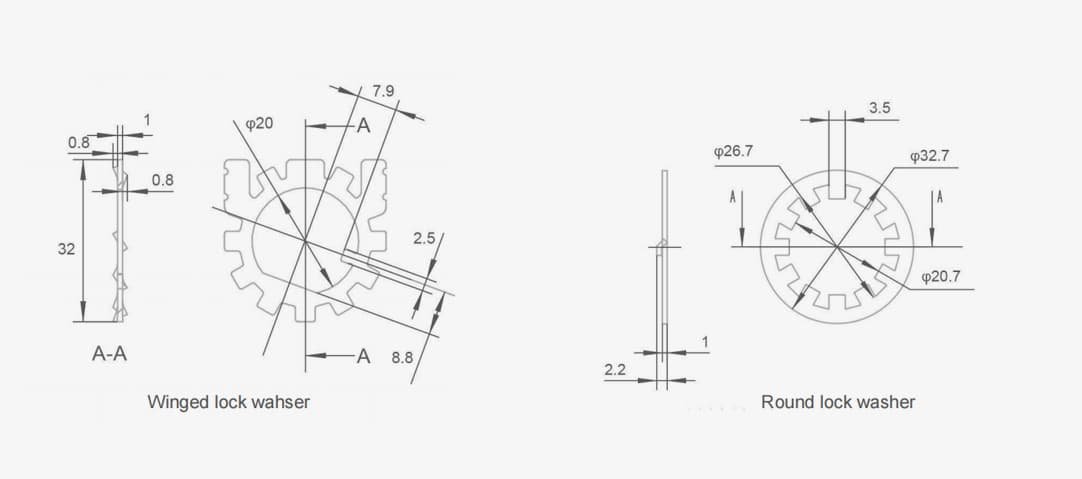

if you want to plastic nut to take place metal nut, so you can add fix rear terminal part ring, and choose from two options: back-stop ring with wing or standard round back-stop ring.
| Model No. | JL-700W2 (slot design) |
| Related Humidity | 96% |
| Work Temperature | -40 ℃-70℃ |
| Wires | The outer diameter of the wire conductor shall not exceed 1.5mm, the outer diameter of the wire sheath shall not exceed 2.2mm, and the stripping head shall be 7.5-14mm and tinned |
| IP protect ratign | IP66 |
| Certifications | zhaga book18, CE |
* here Chilightign offer zhaga series controller: JL-712B2A2, JL-712G3L, JL-712A2H,JL-722B2A2, etc
* short thread length type:700T3N, 700T, 700S.
* available customizable wire length;
* optional offer zhaga typle conroller base: JL-701j, JL-711J, JL-731J, JL-732J, JL-741j, JL-742j.
Product Size
Here Your Product Guides
Chilighting, Good qualities product from nice service and lead-time of from supplier in the china lighting fixture industries. In this case, although we can help you further more than zhaga series service, so also to help you reduce unexpected product risk question.
Book18 zhaga certificate
zhaga book18 listed accemblies product: zhaga base, zhaga cover and zhag socket.
Zhaga Socket
JL-700, JL-700L and JL-700S, JL-710, and JL-700W, JL-700W2, JL-700M, JL-700K4/K5
Zhaga base&cover kits
JL-701J, JL-711J, JL-731J,JL-732J,JL-741J,JL-742J

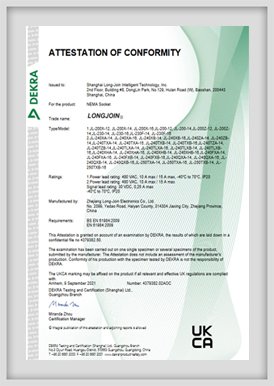

Qualification Certificates
Product Application Diagram

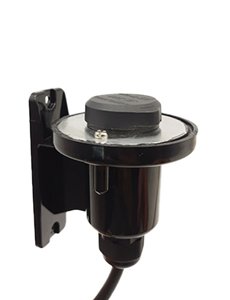

JL-700C &JL-210K kits
Quick wire connector terminal block

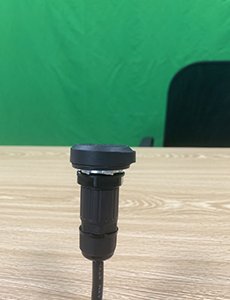

zhaga socket JL-700L, cable and waterproof connector

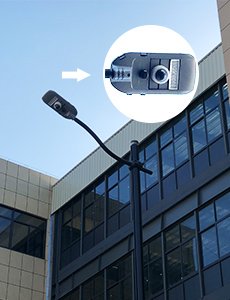

zhaga lighting project 03

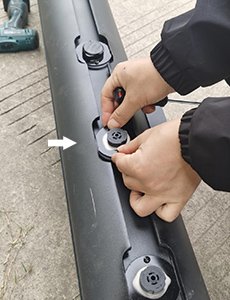

zhaga lighting project, JL-700K4/K5
